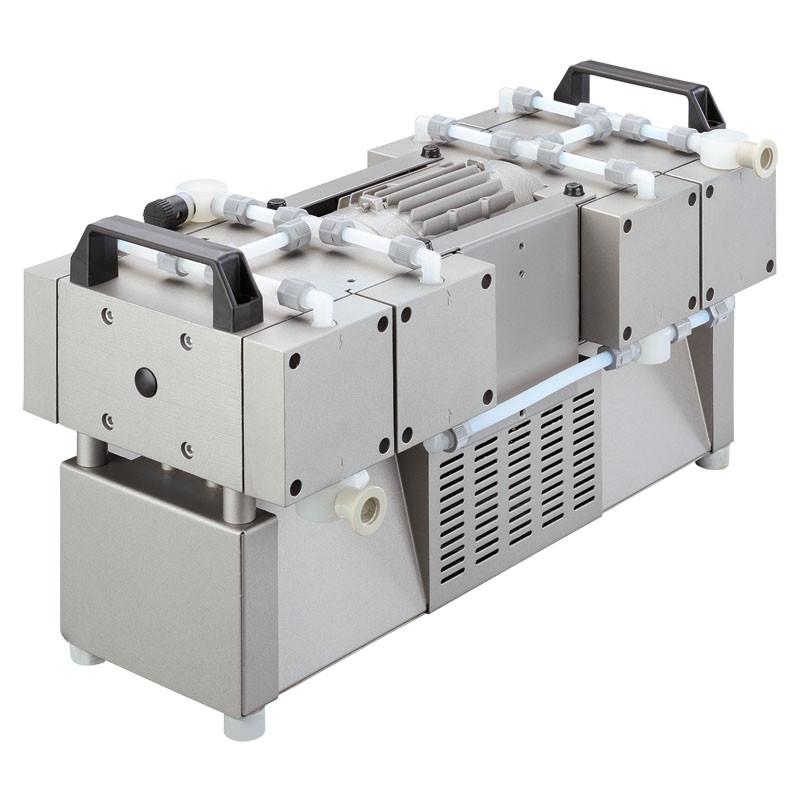

Welch, Dry Diaphragm vacuum pump
 |
 |
 |
Welch diaphragm pumps have been developed specifically to meet the requirement for oil-free vacuum generation. Their low weight and excellent ergonomics,
make Welch diaphragm pumps the first choice for most laboratory applications. With ultimate vacuum from 75 to 1 mbar and peak flow rates up to 138 l/min there is a specific model configuration to suit almost all applications. Our proven diaphragm technology offers a double benefit to the user user – outstanding diaphragm life and market leading cost of ownership. Use MP models for standard duty applications and MPC models for chemical duty applications.
The MPC models use PTFE and other fluorinated plastics for the wetted parts to allow aggressive
solvent and acid vapours to be pumped. For extra harsh chemical vapours use X2 versions. Ecoflex
versions with variable speed motors are also available
Advantages
- analytically pure, oil free vacuum
- user friendly
- light weight, rugged design
- designed for permanent operation
- maintenance-free drive system and proven long diaphragm life
- minimal operation vibration
- wide vacuum and flow range to match application
- superior chemical resistance (MPC models)
Scope of Delivery
- ON/OFF switch and internal protective thermal switch for the motor, mains cable and plug
- carry handle
- vibration isolating feet
- MP models come with and exhaust silencer
- MPC models come with a gas ballast valve
Range of Applications
- rotary evaporators
- vacuum ovens
- degassing / desiccation
- vacuum distillation
- vacuum filtration
- solid phase extraction (SPE)
- gas sampling
- vacuum drying
- vacuum holding
- pick and place
- backing turbomolecular pumps
Model Available : Welch MPC 201 E, Welch MPC 301 E, Welch MPC 601 E, Welch MPC 602 E, Welch MPC 1201 E, Welch MPC 2401 E, Welch MPC 101 Z, Welch MPC 301 Z, Welch MPC 302 Z, Welch MPC 901 Z, Welch MPC 201 T, Welch MPC 601 T, Welch MPC 602 T Welch MPC 1201 T.
ULTIMATE PRESSURE < 75 mbar
ULTIMATE PRESSURE < 8 mbar
HIGH CHEMICAL RESISTANCE
