PFEFG5 Kurt J Oil Mist Eliminators

KJLC® Regular Duty Oil Mist Eliminators

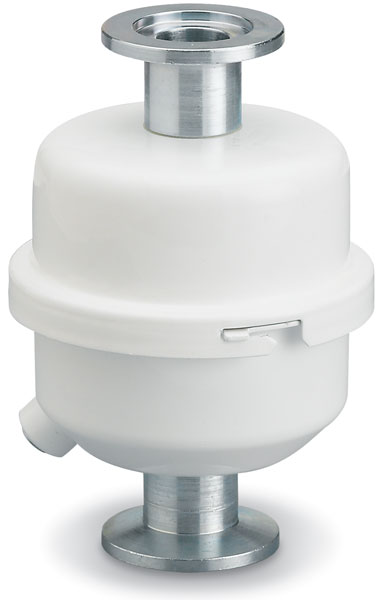

Compact Series Exhaust Filters

  • Low-profile, compact open-body design with a high coalescing media
  • Operates at 99.97% removal efficiency at 0.3 micron diameter particles with maximum inlet concentration of 500 ppmw (parts per million by wt.) mineral oil or 1,000 ppmw synthetic oil
  • Filter has expanded metal on both sides of the media and nickel chrome construction with a plated finish
  • Works between 4°C and 104°C

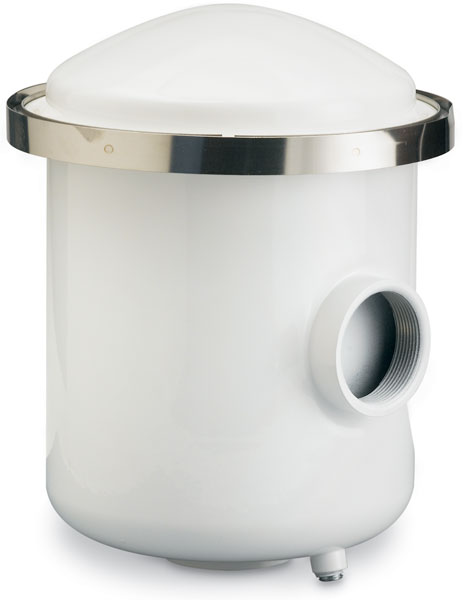

Pressure Release Series Exhaust Filters

  • Feature a back pressure release valve with a 1/8" NPT oil drain to release the element at (7.38 psi) 0.5 bar differential for pump protection
  • Fully drawn, sealed-body shell adds durability, making each filter nearly invulnerable to rust and vibration
  • Compact, low-profile design uses high-performance coalescing media housed in a durable carbon steel construction with baked enamel finish
  • Filters help purify the surrounding environment while giving a minimum efficiency of 99.7% on 0.3 micron diameter particles
  • Operate at temperatures between 4°C and 104°C

NOTE: Element Included with Oil Mist Eliminators

Part number available Kurt J PFEFG10QF25, Kurt J PFEFG5QF16, Kurt J PFEGL915QF16, Kurt J PFEGL915QF25, Kurt J PFEGL925QF25, Kurt J PFEFG10, Kurt J PFEFG5, Kurt J PFEGL910, Kurt J PFEGL915, Kurt J PFEGL925

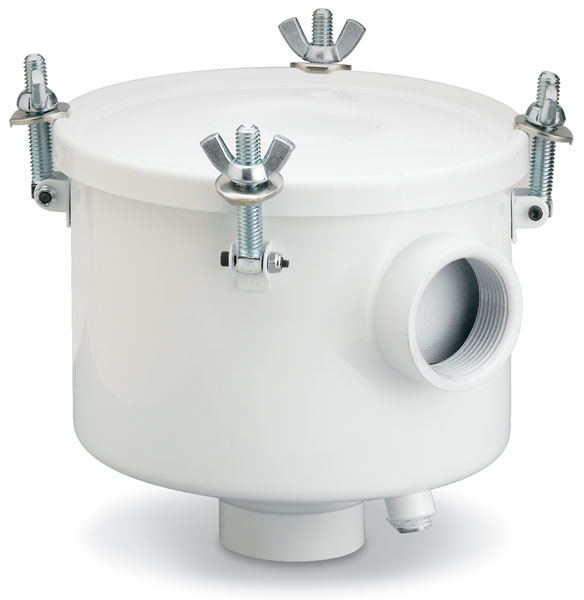

KJLC® Heavy Duty Oil Mist Eliminators
  • Feature brazed fittings and a positive sealing o-ring seal system for high vacuum duty
  • Fully drawn, one-piece carbon steel canister with a standard 1/4" drain tap
  • Operate from 4°C to 104°C
  • Minimum efficiency of 99.97% on 0.3 micron diameter particles with maximum inlet concentration of 500 ppmw (parts per million by weight) mineral oil or 1,000 ppmw synthetic oil
  • Low oil carryover and large oil-catching efficiency
  • Can perform low velocity separation of ultra fine oil mist due to filter's large surface area

Part number available Kurt J PFEHG848100, Kurt J PFEHG848125, Kurt J PFEHG848150, Kurt J PFEHG850200, Kurt J PFEHG860200, Kurt J PFEHG848, Kurt J PFEHG850, Kurt J PFEHG860
